Ask Uncle Colin: Simultaneous Trigonometry

Dear Uncle Colin,

I'm normally pretty good at simultaneous equations, but I can't figure out how to solve this for $a$ and $b$.

$\cos(a)-\cos(b) = x$
$\sin(a)-\sin(b) = y$

– Any Random Circle

Hi, ARC, and thanks for your message!

This is, it turns out, a bit trickier than it looks at first glance – and (in most cases) unlikely to lead to exact answers.

So, rather than get to an explicit answer, I'll talk through a strategy.

Draw a picture

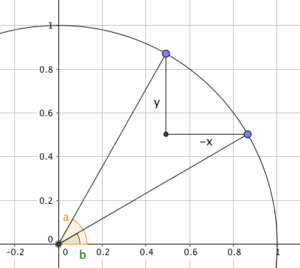

Before anything else, we should draw a picture of what we're looking at, using the geometric definitions of sine and cosine:

Angles a and b

Play 'spot the triangle'

The right-angled triangle shown, with legs of $-x$ and $y$, clearly has a hypotenuse of $\sqrt{x^2 + y^2}$.

The triangle comprising the origin and the two points is isosceles, with an apex angle of ${a-b}$ and two sides of length 1 while the other is $\sqrt{x^2 + y^2}$.

Splitting that in half tells us that $\sin\left(\frac{a-b}{2}\right) = \frac{\sqrt{x^2 + y^2}}{2}$.

The angle between the '$y$' leg and the hypotenuse is $\frac{b+a}{2}$ after a little bit of algebra – which leads to $\sin\left(\frac{a+b}{2}\right) = \frac{-x}{\sqrt{x^2+y^2}}$.

Watch for the booby trap!

The temptation is to reach for a formula – possibly $\sin(A) + \sin(B) = 2\sin\left(\frac{A+B}{2}\right)\cos
\left(\frac{A-B}{2}\right)$, but this will just lead you back to where you started.

Not that I did that, or anything, you understand.

It's a bit cloggy

Instead, the best approach I have is to find the arcsine of both of the bits we've worked out, taking great care to ensure that they're consistent with the signs of $x$ and $y$.

Adding the resulting angles together gives $a$; subtracting them gives $b$. Writing them out gives an unholy mess, and I'm not going there!

Hope it helps all the same,

– Uncle Colin

* Edited 2017-10-11 to correct the apex angle. Thanks to @evariste1832 for pointing out the error.
